Cache Settings

DataBrain supports query result caching to reduce database load and improve dashboard performance. You can either use DataBrain’s managed cache or bring your own Redis/Elasticache instance.
Cache is configured per workspace. Each workspace can independently choose its caching mode and settings.

​
Caching Modes

Best for: Teams that want fast setup without managing Redis infrastructure.DataBrain provides a managed Redis instance. You only need to enable it and set a TTL — no host, port, or password configuration required.How it works:
  1. Toggle “Cache Settings” to enable caching
  2. Enable the “Databrain Caching” option
  3. Set your desired cache expiration (in seconds)
  4. Click Save
With DataBrain Caching, cached query results are stored in DataBrain’s managed Redis instance. If data residency is a concern, consider using Bring Your Own Cache instead.

​
Configuration Reference

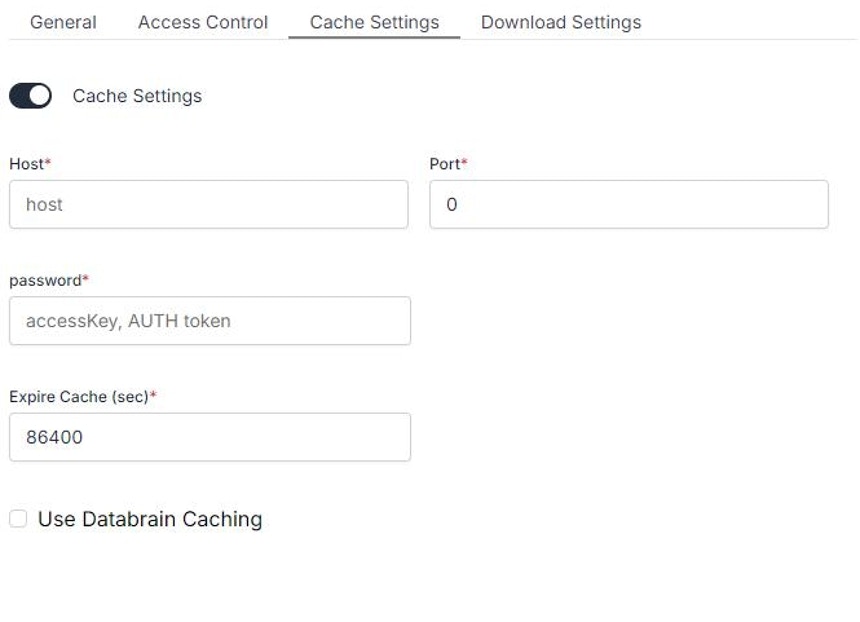

Navigate to Workspace Settings → Cache Settings to configure caching.

​
Settings

SettingDescriptionRequiredDefault
Cache Settings toggleEnable or disable caching for this workspaceYesDisabled
Databrain CachingUse DataBrain’s managed Redis instanceNoDisabled
HostRedis/Elasticache endpoint (BYOC only)BYOC only—
PortRedis port (BYOC only)BYOC only6379
Access Key / AUTH TokenRedis password or AUTH token (BYOC only)BYOC only—
Cache ExpirationTime-to-live for cached results, in secondsYes86400 (24 hours)

​
How Caching Works

When caching is enabled, this is the query execution flow:
1

User requests a dashboard or metric

A query is generated based on the metric definition, applied filters, and row-level security rules.
2

Cache lookup

DataBrain checks the configured Redis instance for a cached result matching the query.The cache key includes:
  • Database name
  • Datasource ID
  • Generated SQL query
  • Applied filters
  • Workspace ID
This ensures that different tenants, filters, and queries produce separate cache entries.
3

Cache hit → return cached result

If a matching cached result exists and has not expired, it is returned immediately — no database query is executed.
4

Cache miss → execute query and cache result

If no cache entry exists (or it has expired), DataBrain executes the query against your database. Successful results are cached with the configured TTL for future requests.

​
Graceful Degradation

If the Redis connection fails or times out (5-second connection timeout), DataBrain does not block the query. The query executes directly against your database and results are returned without caching. Cache errors are logged but never prevent dashboard functionality.

​
TTL Recommendations

Choose a cache expiration based on your data freshness requirements:
Use CaseRecommended TTLNotes
Real-time dashboards60 – 300 (1–5 min)For data that changes frequently
Hourly reporting3600 (1 hour)Good balance of freshness and performance
Daily reporting86400 (24 hours)Default. Best for data updated nightly
Static / historical data604800 (7 days)For data that rarely changes
Start with a higher TTL (e.g., 1 hour) and reduce it only if users report stale data. Higher cache hit rates significantly reduce database load.

​
BYOC Setup Guide

​
Prerequisites

  • A running Redis 5.0+ or AWS Elasticache (Redis) instance
  • Network connectivity from DataBrain’s cloud to your Redis instance
  • Redis AUTH password (recommended for security)

​
Network Requirements

Your Redis instance must be accessible from DataBrain’s cloud over the network. DataBrain connects directly to the host and port you provide — there is no SSH tunneling or special proxy for Redis connections.
Never expose Redis on a public endpoint without AUTH enabled. Always use a strong password.
To allow connectivity:
  • Whitelist DataBrain’s IP address in your Redis instance’s security group (see Allow Access to our IP for the current IP)
  • Ensure your Redis port (default 6379) is open for inbound connections from DataBrain’s IP
  • If your Redis is in a private network that is not reachable from the public internet, contact DataBrain support to discuss connectivity options
TLS/SSL: The Redis client currently connects without TLS encryption. If your Redis instance requires encryption in transit, contact DataBrain support to discuss options.

​
Step-by-Step Setup

1

Provision your Redis instance

Set up a Redis instance that is reachable from DataBrain’s cloud. This could be:
  • Redis Cloud (publicly accessible by default)
  • Self-managed Redis on a public-facing server (e.g., EC2 with a public IP)
  • AWS Elasticache (requires network configuration — contact support if your instance is in a private subnet)
Note the host, port, and AUTH password.
2

Configure network access

Whitelist DataBrain’s IP address in your Redis instance’s security group or firewall rules:
  • Inbound rule: Allow TCP on your Redis port (default 6379) from DataBrain’s IP
  • See Allow Access to our IP for the current IP address
3

Configure in DataBrain

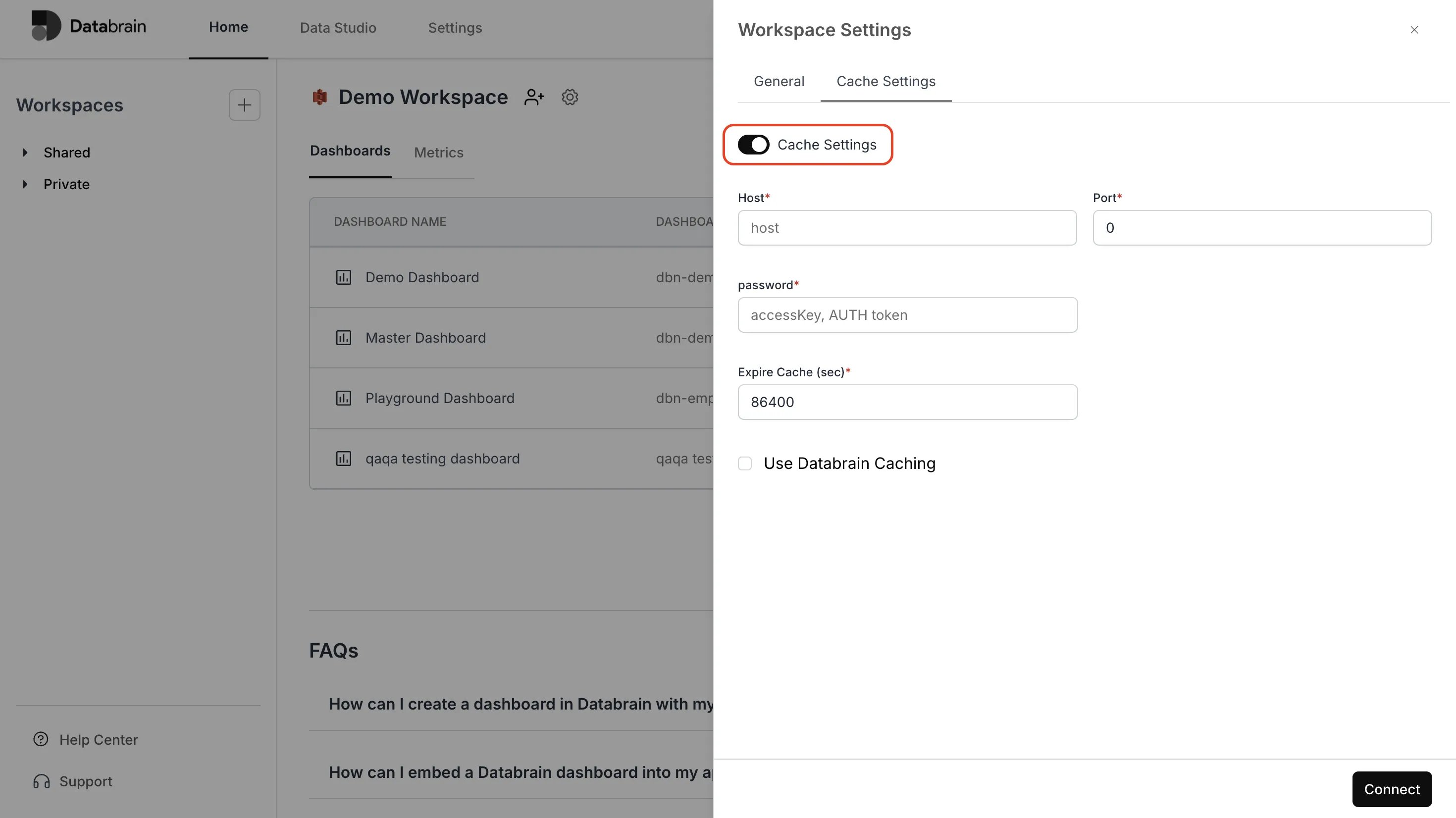

  1. Go to Workspace Settings → Cache Settings
  2. Toggle Cache Settings to enabled
  3. Leave Databrain Caching disabled
  4. Enter your Host (e.g., my-redis.example.com)
  5. Enter your Port (e.g., 6379)
  6. Enter your Access Key / AUTH Token
  7. Set Cache Expiration in seconds
  8. Click Save
4

Verify

DataBrain will automatically validate the connection by writing and reading a test key. If the save succeeds, your BYOC cache is active.Load a dashboard and check that subsequent loads are faster — the response metadata will show "cached": true for cache hits.

​
Cache Invalidation

DataBrain provides several ways to manage cached data:
MethodScopeHow
TTL expirationPer keyAutomatic — keys expire based on your configured TTL
Reset cacheEntire workspaceUse the Reset Cache option in Workspace Settings to flush all cached data
Pattern-based deletionPer datasource/workspaceAutomatic when datasource configuration changes
If you update your underlying data (e.g., a nightly ETL load), you can reset the cache to ensure users see fresh data immediately. Otherwise, the TTL will handle expiration automatically.

​
Self-Hosted Deployment

For self-hosted DataBrain deployments, Redis is configured via environment variables:
# Redis Configuration
REDIS_HOST=your-redis-host    # Required: Redis server hostname
REDIS_PORT=6379               # Required: Redis server port (default: 6379)
REDIS_PASSWORD=your-password  # Optional: Redis AUTH password
These environment variables configure the DataBrain-managed cache mode. Workspaces that enable “Databrain Caching” will use this Redis instance. Workspaces using BYOC will connect to their own specified Redis instance regardless of these environment variables.

Self-Hosted Configuration

Complete self-hosted deployment guide

​
Security

ConcernHow it’s addressed
Credential storageYour Redis host, port, and AUTH token are stored AES-256 encrypted in DataBrain’s PostgreSQL
Data residency (BYOC)Cached query results are stored in your Redis instance, not DataBrain’s infrastructure
Data residency (Managed)Cached query results are stored in DataBrain’s managed Redis instance
Connection securityRedis AUTH password is used for authentication
Failure handlingCache failures never block queries — DataBrain falls back to direct database execution

Security & Data Residency

Full security and data residency documentation

​
Frequently Asked Questions

DataBrain Caching uses a Redis instance managed by DataBrain. You don’t need to provision or manage any infrastructure — just enable it and set a TTL.Bring Your Own Cache (BYOC) lets you connect your own Redis or Elasticache instance. Cached data stays in your infrastructure, giving you full control over data residency, eviction policies, and scaling.
Only query results (JSON format) are cached. Cache keys include the query hash, datasource ID, filters, and workspace ID — ensuring tenant isolation. Dashboard definitions, metric configurations, and user data are never stored in Redis.
DataBrain degrades gracefully. If the Redis connection fails or times out, queries execute directly against your database. Users will experience slightly slower load times (no cache hits) but dashboards will continue to work. Cache errors are logged for monitoring.
Yes. Each workspace has independent cache settings. One workspace can use DataBrain Caching while another uses BYOC with a different Redis instance.
Load a dashboard, then reload it. The second load should be noticeably faster. The API response metadata includes a "cached" field that indicates whether results came from cache.
DataBrain uses the ioredis client and is compatible with Redis 5.0 and above, including AWS Elasticache (Redis mode) and Redis Cloud.
Yes. Cache keys include the full query (which already has RLS applied) plus filters and workspace ID. Different tenants with different RLS rules will have separate cache entries.
